Product description:

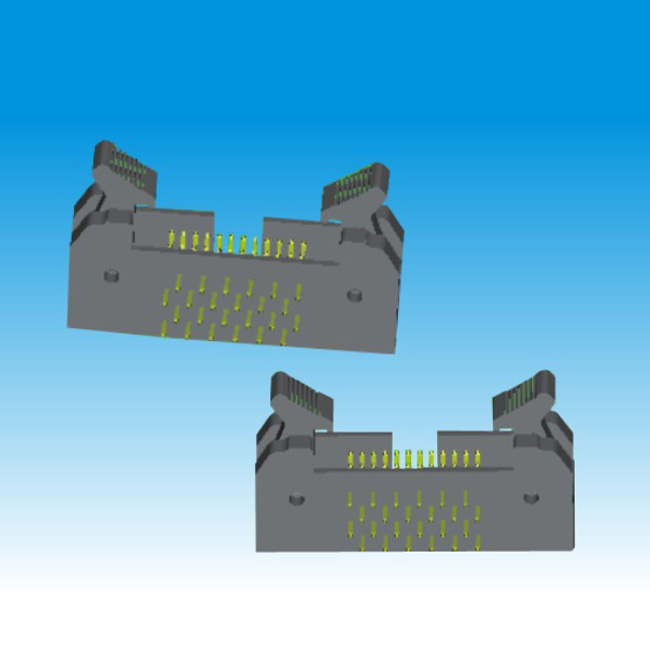

Ejector Header are normally only used in combination with insulation-displacement connectors (IDC) for ribbon cables. A notch (key) in the guide EJector header normally prevents placing the connector (polarised by a "bump" on one side) the wrong way around.Ejector header have latch to lock the matching product.
The Ejector header mainly used in communication and electronic equipment and data by welding on the PCB board, connecting the corresponding specifications of IDC cable and other circuit designers need to be welded on a PCB board.
Specifications:
| Contact Material | Phosphor Brass |
| Insulator Material | PA6T/PA9T/LCP |
| Contact Plating | Au or Sn over 50U"NI |
| Withstanding Voltage | 500V |
| Current Rating | 1.5A |
| Insulation Resistance | 1000MΩ Min |
| Package : | Tube packing |
| soldering type | Right Angle |
| Operation Temperature: | -40 ℃ to +105 ℃ |
3341XXRXXXXLX01.pdf
Features:
High Quality Guaranteed
First Class Service
Best Prices
Stable performance
sturdy and durable
Long lifespan
wear resistant
Advantage:
1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.
Company Information:
Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectors,was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.We always follow the guideline of specialization and automatization since the establishment.
Production Capability:
The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.
Complete Testing Equipment:
To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.
Certifications:
The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements
FAQ:
Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
Q: What about your leading&delivery time?
A: Leading time according to your quantity, and usually delivery time is 5~7 working days. If you are very urgent, we can negotiate.
Q: Do you have UL certificate? and others?
A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.
Q: Why choose our company?
A: 1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.
2. Our MOQ is: 100 PCS(1 PCS for sample).
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
·Shipping
1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.
2. If goods is large:Sea or Air shipping method
